6. Why aren't the separator pages being detected and highlighted with a red border?
There are 2 possible reasons:

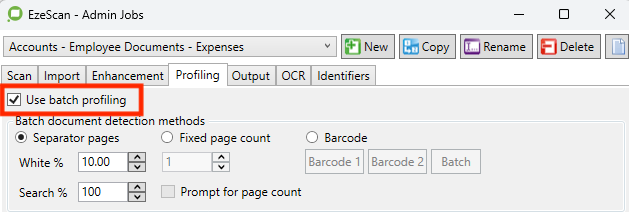

You are running in document scanning mode rather than batch scanning mode. If none of the scanned pages are displayed with either a red or yellow border then you are definitely in document scanning mode. You need to tick the 'Use batch profiling' option on the Profiling tab of the Jobs Menu.
![image (85).png](../__attachments/83952615/image%20(85).png?inst-v=07fa0a6f-b123-4c6b-81ef-d6cec6796582)

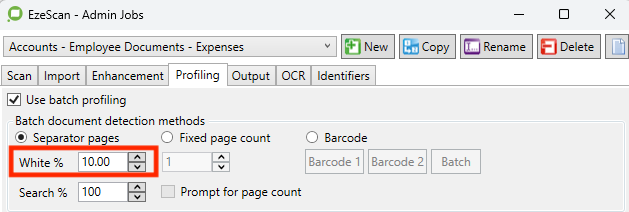

You may have set the ‘White %’ for Separator pages set to the wrong value. A value of less than 50% (normally 10%) suggests you are using black separator pages, whilst a value of greater than 50% (normally 99.5%) suggests you are using white separator pages.
![image (86).png](../__attachments/83952615/image%20(86).png?inst-v=07fa0a6f-b123-4c6b-81ef-d6cec6796582)
