20. What information can be queried in the Audit Database?

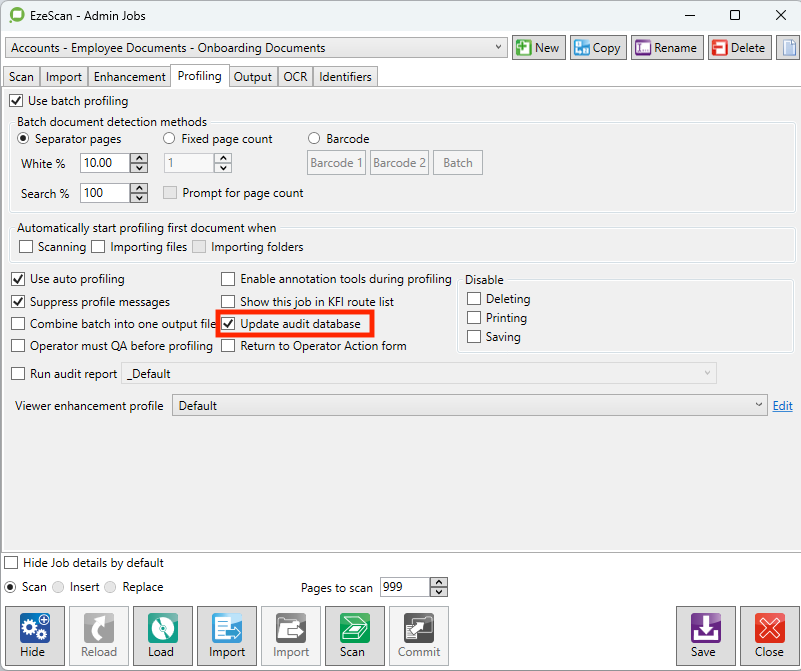

The Audit database is only active if you are licensed for the AUDIT module and your job/route has the "Update Audit Database” selected.

image (88).png

The Audit Database contains the following 3 tables:

  • [Completed_Work] with the following columns in it:

    • ID (AutoNumber)

    • Date_Time (DateTime)

    • Module_Type (Text)

    • Job_Type (Text)

    • Other_Destination (Text)

    • Input_Filename (Text)

    • Input_Directory (Text)

    • Output_Filename (Text)

    • Output_Directory (Text)

    • Output_Email_Address (Text)

    • Output_FtpServer_Address (Text)

    • Output_File_Format (Text)

    • Output_File_Size (Number)

    • Number_Of_Pages (Number)

    • Elapsed_Time (Number)

    • Routing_Rulename (Text)

    • Processed_By (Text)

    • KFI_Index_File (Text)

    • KFI_Index_File2 (Text)

    • Key_Strokes (Number)

    • Workstation_Name (Text)

    • Operator Name (Text)

    • Zone_Errors (Number)

    • Scanner_Settings (Text)

    • Enhancement_Settings (Text)

  • [Current_Work] with the following columns in it:

    • ID (AutoNumber)

    • Job_Type (Text)

    • Module_Type (Text)

    • Job_Type (Text)

    • Workstation_Name (Text)

    • Operator_Name (Text)

    • Date_Time (DateTime)

  • [Deleted_Work] with the following columns in it:

    • ID (AutoNumber)

    • Job_Type (Text)

    • Module_Type (Text)

    • Job_Type (Text)

    • Workstation_Name (Text)

    • Operator_Name (Text)

    • Date_Time (DateTime)

Note: the Jobtype_Statistics table is no longer used/written to


When EzeScan is installed the Audit Reporting Database Settings are set to use a local copy of the EzeScan_Audit MS Access database.

If you want to use a centralised Audit Database with several EzeScan workstations you could simply place the Ezescan_Audit MS Access Database File (Ezescan_Audit.mdb) onto a network shared drive, and then configure each of the PC's to Admin->Options, Audit tab settings to use that network shared database file.  This is only recommended for low-volume usage, with a small number of Ezescan PC's.

If there a large number of Ezescan PC's then a better option, would be to create an Audit database on a networked MS SQL Server and then configure the EzeScan Audit Database ODBC connection to use that database rather than the local or network shared EzeScan_Audit.mdb file. You can find instructions on how to do so here: https://docs.ezescan.com.au/ekb/55-how-can-i-migrate-the-local-audit-database-from
