EzeScan WebApps

Condition Stage

A condition stage allows the processing execution to diverge when the conditions are met.

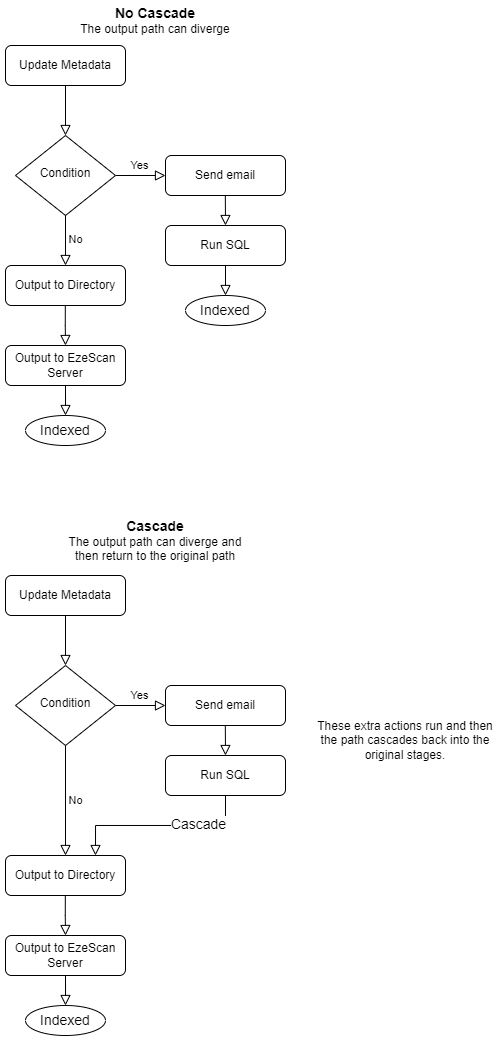

The cascade option provides the ability for a diverged output process to resume the original execution path.

pc2 (1).png

Input Placeholder values should be entered using Placeholders

Target Placeholder can be a hard coded value or a value substituted using Placeholders at run time.

An example of a condition that would diverge when the invoice total field is greater than 2000
