API Endpoint Stage | EzeScan Help Center

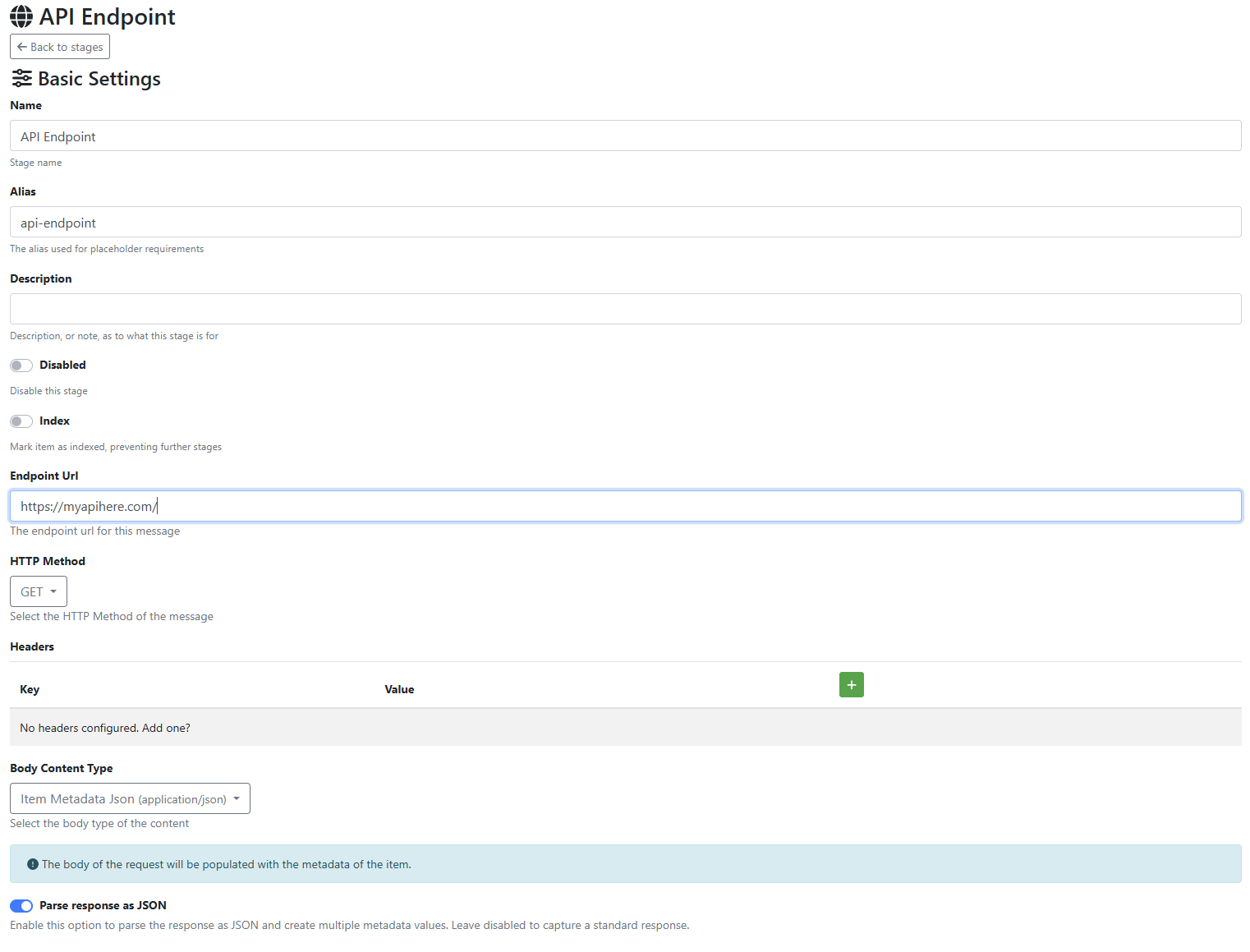

Outputs to a user defined API endpoint.

Body Content Types

Type

Description

Item Metadata Json (application/json)

Preconfigured output in JSON format.

Item Metadata XML (text/xml)

Preconfigured output in XML format.

Item Metadata CSV (text/xml)

Preconfigured output in CSV format.

Attachment Template (application/json)

Custom output in JSON format.

You must construct a valid JSON payload manually.

Example:

{
    "DocumentName": "{{attachment["name"]}}",
    "Length": "{{attachment["size"]}}",
    "PhotoData": "{{attachment["data"]}}"
}

If only one attachment exists, the output will be:

JSON

{
    "DocumentName": "1",
    "Length": "100",
    "PhotoData": "BASE64_ENCODED_DATA_HERE"
}

If multiple attachments exist, the output will be:

[
   {
      "DocumentName":"1",
      "Length":"100",
      "PhotoData":"BASE64_ENCODED_DATA_HERE"
   },
   {
      "DocumentName":"2",
      "Length":"1240",
      "PhotoData":"BASE64_ENCODED_DATA_HERE"
   },
]

Per Attachment Request (application/json)

When this type is specified, a new request is sent separately for each attachment.

Supports the following attachment placeholders:

Placeholder	Description
`{{attachment["name"]}}`	Original file name of the attachment.
`{{attachment["nameNoExtension"]}}`	Original file name of the attachment without its extension.
`{{attachment["extension"]}}`	Original extension of the attachment. Value includes the period. (eg .pdf)
`{{attachment["extensionNoDot"]}}`	Original extension of the attachment. Value doesn’t contain the period. (eg pdf)
`{{attachment["id"]}}`	Id of the uploaded attachment.
`{{attachment["size"]}}`	Size of the attachment in bytes.
`{{attachment["data"]}}`	Base 64 Encoded data of the attachment
`{{attachment["mimeType"]}}`	Mime Type of the file based on its extension.

Example:

{
    "FirstName": "{{fields["first_name"]}}",
    "LastName": "{{fields["last_name"]}}",
    "Age": {{fields["age"]}},
    "IdDocument": {
      "DocumentName": "{{attachment["name"]}}",
      "Length": "{{attachment["size"]}}",
      "Data": "{{attachment["data"]}}"
    }
}

Custom Json (application/json)

Custom output in JSON format.

You must construct a valid JSON payload manually.

Example:

{
    "FirstName": "{{fields["first_name"]}}",
    "LastName": "{{fields["last_name"]}}",
    "Age": {{fields["age"]}}
}

Custom XML (text/xml)

Custom output in XML format.

You must construct a valid XML payload manually.

Example:

HTML

<Person>
    <FirstName>{{fields["first_name"]}}</FirstName>
    <LastName>{{fields["last_name"]}}</LastName>
    <Age>{{fields["age"]}}</Age>
</Person>

Custom Text (text/plain)

Custom output in just a string output.

Use this to just send plain text to the end point.

Example:

The user {{fields["first_name"]}} {{fields["last_name"]}} has just signed up with an age of {{fields["age"]}}

Custom Form (application/x-www-form-urlencoded)

Custom output in XML format.

Example:

FirstName={{fields["first_name"]}}&LastName={{fields["last_name"]}}&Age={{fields["age"]}}

Parse response as JSON

Enabling this option means the return properties are generated from the JSON payload.

Example Return Payload:

{
    "FirstName": "Bobby",
    "LastName": "Brown",
    "Age": 22
}

This would create the following return properties

Property	Example Placeholder	Returned Value
FirstName	`{{stages["api-endpoint"] \| property("FirstName")}}`	Bobby
LastName	`{{stages["api-endpoint"] \| property("LastName")}}`	Brown
Age	`{{stages["api-endpoint"] \| property("Age")}}`	22
