OpenForms
The OpenForms connector is used to retrieve files from the OpenForms service by reading an input EML file which contains Response Ids, where each file can be downloaded using it’s unique Response Id.
Connection Settings

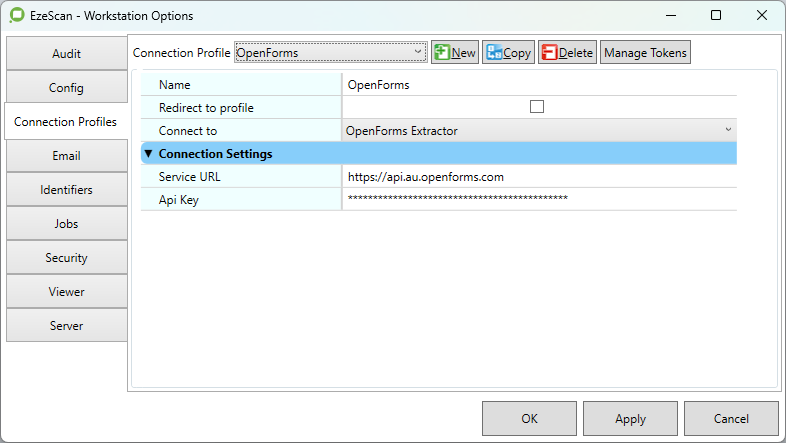

To connect to the OpenForms service, valid Connection Settings are required.
![](../../__attachments/164036641/image-20230413-065049.png?inst-v=59c6a4cd-ce4b-40b8-9de9-76dc92d7fb02)
Output Settings

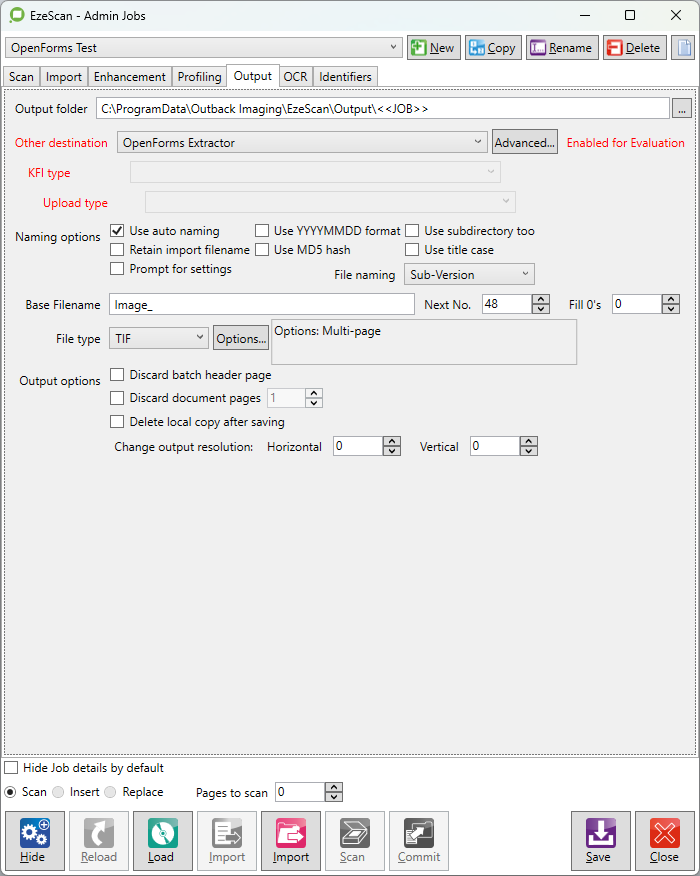

Within EzeScan, the connector is available as an Output:
![](../../__attachments/164036641/image-20230413-063521.png?inst-v=59c6a4cd-ce4b-40b8-9de9-76dc92d7fb02)

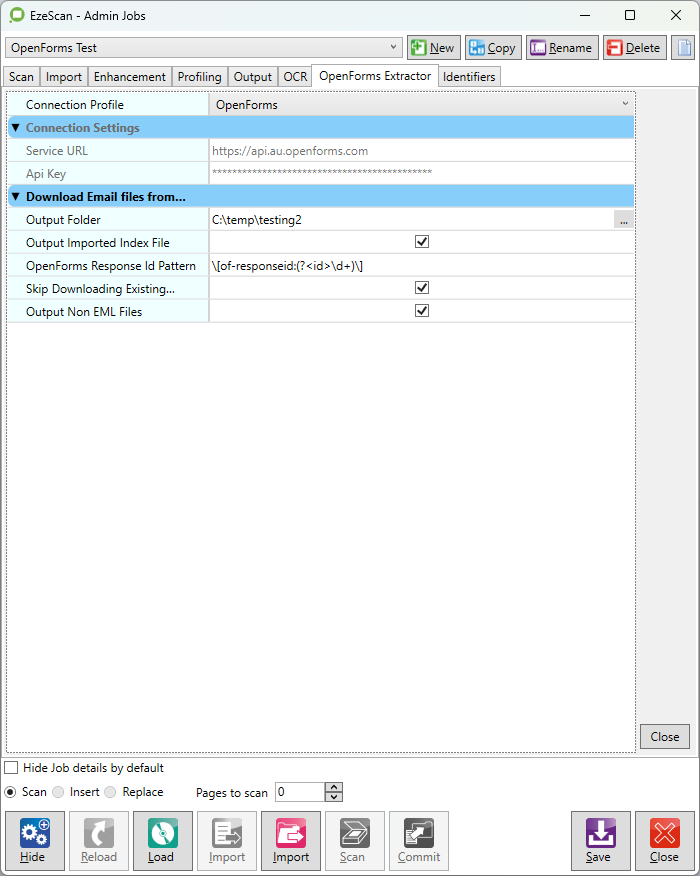

The relevant settings are available by clicking on the Advanced button.
![](../../__attachments/164036641/image-20230413-064306.png?inst-v=59c6a4cd-ce4b-40b8-9de9-76dc92d7fb02)
These settings are described as:
Setting Name | Description |
---|---|
Output Folder | Set the folder output path. |
Output Imported Index File | Copy the imported index file to the output directory using the same base name as the download PDF. |
OpenForms Response Id Pattern | The regex pattern for matching the OpenForms Response Id. |
Skip Downloading Existing Attachments | Skip downloading attachments from OpenForms that have already been downloaded from the EML file. |
Output Non EML Files | Copy the Non EML files to the output directory. |
